本文是真实配置，全部以实机配置过程呈现，请勿直接应用于其他网络(实际情况可能会出现不一样的情况)
本文出现机柜为MR-1和MP-1两个机柜(内部编号，请勿过度解读)以及MA-1核心柜(非主核心柜，请勿解读为主核心柜)

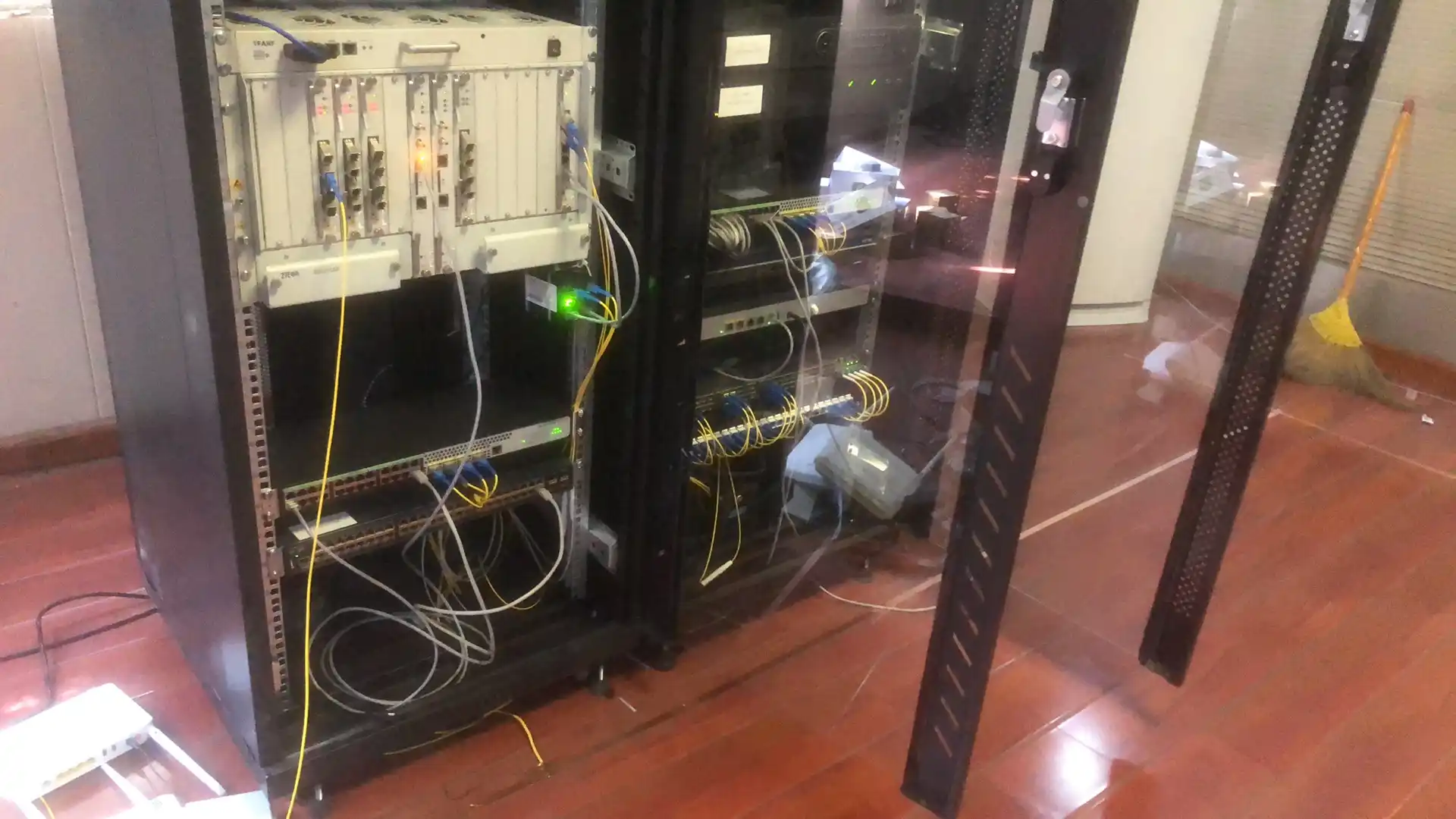

MR和MP机柜
MA核心柜

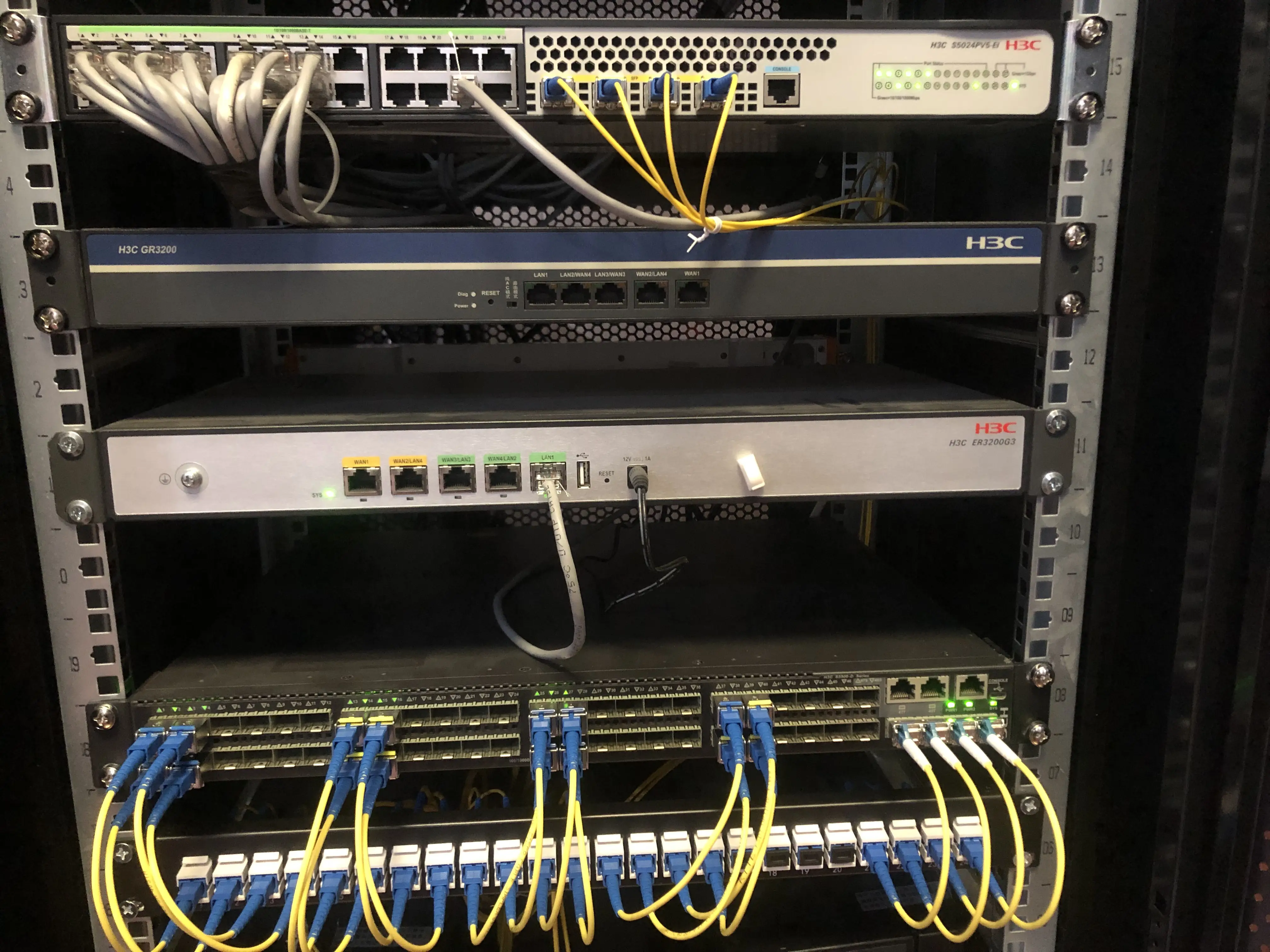

配置MP机柜设备，MP机柜设备特写
下方全光口交换机为H3C_S5552F，4x10G上联以及48x1G光口
倒数第二个是AC控制器
倒数第三个是备用AC，未启用
倒数第四个是MP业务主交换，24口电+4x1G光口
S5552F配置（不显示头部）
#创建VLAN 1(default), 4-6, 10, 22, 28, 41, 81, 88, 111, 330, 380, 833, 1015-1017
#配置业务端口
#配置BAGG1
----------
int Bridge-Aggregation 1
link-agg mode dyn
quit
int range ten 1/0/49 to ten 1/0/52
default
port link-agg group 1
quit
int Bridge-Aggregation 1
port link-type hybrid
port hybrid vlan 4 10 28 81 111 330 833 1015 to 1017 tagged
port hybrid vlan 1 untagged
quit
#配置BAGG2
----------
int Bridge-Aggregation 2
link-agg mode dyn
quit
int range gi 1/0/1 to gi 1/0/4
default
port link-agg group 2
quit
int Bridge-Aggregation 2
description jigui1
port link-type hybrid
port hybrid vlan 4 6 81 330 tagged
port hybrid vlan 1 untagged
quit
#配置BAGG3
----------
int Bridge-Aggregation 3
link-agg mode dyn
quit
int range gi 1/0/13 to gi 1/0/16
default
port link-agg group 3
quit
int Bridge-Aggregation 3
description jigui2
port link-type hybrid
port hybrid vlan 111 tagged
port hybrid vlan 1 untagged
#配置BAGG4
----------
int Bridge-Aggregation 4
link-agg mode dyn
quit
int range gi 1/0/25 to gi 1/0/28
default
port link-agg group 4
quit
int Bridge-Aggregation 4
description ZTE-OLT
port link-type hybrid
port hybrid vlan 4 6 10 28 41 111 330 833 1015 to 1016 tagged
port hybrid vlan 1 untagged
port hybrid pvid vlan 41
#配置VLAN 111
-----------
int vlan 111
ip add 192.168.111.1 24
quit
#配置VLAN 1
-----------
int vlan 1
ip add 172.16.83.212 22
quit
#保存配置文件
-----------
save force
#H3C_S5552F配置完毕
-----------下面配置H3C_S5024PV5，MP机柜
#本配置文件是MP机柜的配置文件
#创建VLAN 1 81 1016 330
#配置1-2是VLAN 81
-----------
int range gi 1/0/1 to gi 1/0/2
port link-ty acc
port acc vlan 81
quit
#配置上联口四个光口为聚合口
-----------
int Bridge-Aggregation 1
link-agg mode dyn
quit
int range gi 1/0/25 to gi 1/0/28
default
port link-agg group 1
quit
int Bridge-Aggregation 1
port link-ty hy
port hy vlan 81 tag
port hy vlan 330 tag
port hy vlan 1016 tag
port hy pvid 1
port hy vlan 1 untag
quit
#保存配置文件
-----------
save force
#H3C_S5024PV5 MP机柜5024结束
-----------MR机柜配置5024PV5交换机
#配置VLAN 111 1 330 1016
#配置上联口聚合
-----------
int Bridge-Aggregation 1
link-agg mode dyn
quit
int range gi 1/0/25 to gi 1/0/28
default
port link-agg group 1
quit
int Bridge-Aggregation 1
port link-ty hy
port hy vlan 111 tag
port hy vlan 330 tag
port hy vlan 1016 tag
#配置1-2接口到VLAN 111
-----------
int range gi 1/0/1 to gi 1/0/2
port link-ty acc
port acc vlan 1
#配置完毕，下面保存配置
-----------
save force
#H3C_S5024PV5 MR机柜5024结束配置MR机柜内的OLT，中兴C220
#配置中兴OLT的上联板(中兴的不支持range)
-----------
int smartgroup1
exit
int gei_0/14/1
#中兴的LACP是配置主动还是被动的时候才生效
smartgroup 1 mode passive
exit
int gei_0/14/2
smartgroup 1 mode passive
exit
int gei_0/14/3
smartgroup 1 mode passive
exit
int gei_0/14/4
smartgroup 1 mode passive
exit
#配置业务VLAN放通
-----------
#先创建VLAN 1 4 10 28 111 330
int smartgroup1
sw mode hy
sw vlan 1 tag
sw vlan 4 tag
sw vlan 10 tag
sw vlan 28 tag
sw vlan 111 tag
sw vlan 330 tag
end
#保存配置
-----------
write
#中兴的上联配置完毕要配置中兴的业务PON口需要看这篇文章
设置ONU的PON口
