中兴C220 OLT配置链路聚合与VLAN

中兴C220 OLT支持LACP，建议配置的时候配置成被动LACP，主动的可能无法正确聚合上
本部分配置的VLAN业务：
VLAN 111：监控视频
VLAN 10： 常规无线网
VLAN 4： 需要认证无线网
VLAN 330：专线宽带
VLAN 28： TR069
注意：设置聚合最低需要EIGM业务板（4口C+2口F Combo）

telnet 10.10.10.10
ZXAN#conf t
-----------
(创建VLAN 111，4，10，330，28这里不放了)
-----------
ZXAN(config)#int smartgroup1
ZXAN(config-if)#exit
ZXAN(config)#int gei_0/14/1
ZXAN(config-if)#smartgroup 1 mode passive
ZXAN(config-if)#exit
ZXAN(config)#int gei_0/14/2
ZXAN(config-if)#smartgroup 1 mode passive
ZXAN(config-if)#exit
-----------
ZXAN(config)#int smartgroup1
ZXAN(config-if)#sw mode hy
ZXAN(config-if)#sw vlan 111 tag
ZXAN(config-if)#sw vlan 4 tag
ZXAN(config-if)#sw vlan 10 tag
ZXAN(config-if)#sw vlan 330 tag
ZXAN(config-if)#sw vlan 28 tag
ZXAN(config-if)#end
ZXAN#write
......[OK]

下面到对端的交换机H3C_S5552F上配置LACP链路聚合

<H3C>sys
(创建和上面一致的VLAN)
[H3C]int Bridge-Aggregation 1
[H3C-Bridge-Aggregation1]quit
[H3C]int range gi 1/0/23 to gi 1/0/24
[H3C-if-range]port link-agg group 1
[H3C-if-range]quit
[H3C]int Bridge-Aggregaiton 1
[H3C-Bridge-Aggregation1]link-agg mode dynamic
[H3C-Bridge-Aggregation1]port link-ty hy
[H3C-Bridge-Aggregation1]port hy vlan 10 tag
[H3C-Bridge-Aggregation1]port hy vlan 4 tag
[H3C-Bridge-Aggregation1]port hy vlan 111 tag
[H3C-Bridge-Aggregation1]port hy vlan 330 tag
[H3C-Bridge-Aggregation1]port hy vlan 28 tag
----------------
#录像机在gi 1/0/1和gi 1/0/2上
[H3C]int range gi 1/0/1 to gi 1/0/2
[H3C-if-range]port link-ty access
[H3C-if-range]port acc vlan 111
[H3C-if-range]quit


#TR069服务器和常用无线网，认证无线网在gi1/0/3上，专线在gi1/0/4上
[H3C]int gi 1/0/3
[H3C-GigabitEthernet1/0/3]port link-ty hy
[H3C-GigabitEthernet1/0/3]port hy vlan 28 tag
[H3C-GigabitEthernet1/0/3]port hy vlan 10 tag
[H3C-GigabitEthernet1/0/3]port hy vlan 4 untag
[H3C-GigabitEthernet1/0/3]port hy pvid vlan 4
[H3C-GigabitEthernet1/0/3]quit
[H3C]int gi 1/0/4
[H3C-GigabitEthernet1/0/4]port link-ty acc
[H3C-GigabitEthernet1/0/4]port acc vlan 330
[H3C-GigabitEthernet1/0/4]quit
[H3C]save force

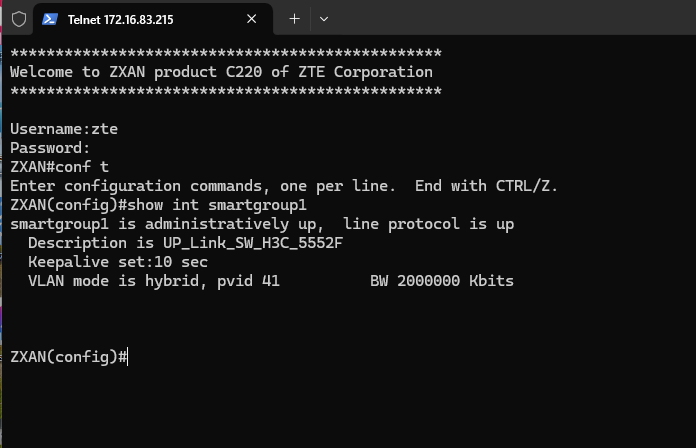

放一下OLT链路聚合上的对端状态
